CuZn WHCM-47 Water Filter
Description
For best results, check if your municipality uses Chlorine or Chloramine to treat your water.
Enjoy pure, delicious water throughout your entire home! CuZn’s revolutionary WHCM-47 is an advanced multi media filtration system, a pre-sediment filter included with your purchase. Earth Friendly! Features include biodegradable or recyclable medias, no waste water, no backwashing, chemical free, salt free & refillable housing
Delicious water without removing essential minerals
Chlorine or Chloramine?
Extensive Case Studies
{tab=Product Information}
Model#WHCM-47 Dual Tank Filtration Process:
The vast majority of Whole House Systems available today utilize carbon only, a great filter media for common volatile organic contaminants but it does not address the increasingly complex variety of inorganic & organic contaminants that are turning up in water supplies worldwide.
CuZn’s Wide Spectrum Multi Media Stage System target a wider variety of potential contaminants, including both inorganic & organic contaminants. Learn more about CuZn’s Wide Spectrum Model’s patented filtration process below.

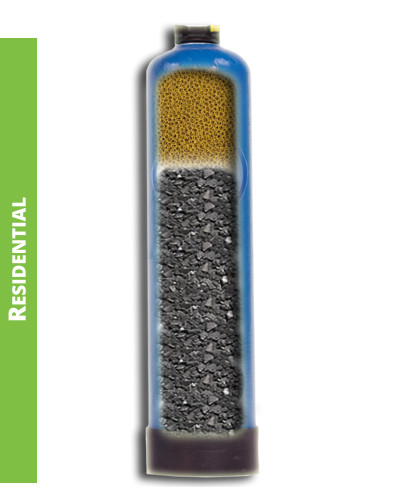

About CuZn’s WHCM-47 patented Multi Media filtration process:
The WHCM-47 Wide Spectrum model’s process begins with a Micro Sediment Pre-Filter (model#FHBB-101) to remove any physical, insoluble particles out of the water (even though your water runs clear, you will be amazed by how much dirt & grime this filter captures).
The main tank system utilizes CuZn’s proprietary reticulated KDF-85, in addition to a blend of catalytic acid washed coconut shell carbon & zeolite filtration media.
The Reticulated KDF-85 Filtration Media Stage is a remarkable REDOX media (oxidation/reduction), representing a new and unique natural process of electrochemical oxidation/reduction and adsorption action. KDF-85 targets the dissolved inorganic contaminants (up to 98% of soluble cation heavy metals including mercury, lead, chromium, cadmium, etc.).
Powerful KDF-85 redox media produces an ORP Shift of -300mV or more, creating bacteriostatic environment that prevents the growth of bacteria, mold & other microbial contaminants.
KDF-85 also prevents corrosion and eliminates scale by transforming hardness minerals into crystalline structures that do not adhere to plumbing & appliances (learn more in the What is Salt Free Softening? section below).
SNRF Ion Exchange Coconut Shell Carbon is an adsorbent media that target the volatile organic compounds (chlorine, THMs, disinfection by products, herbicides, pesticides, etc). This carbon is supercharged with an internal modification for ion exchange properties for soluble lead adsorption (Ion Exchange Capacity is 130mg/g). The heavy metal reduction capability is redundant given that reticulated KDF-85 is also incorporated in to the system design, guaranteeing 99% removal of soluble lead (even at high flow rates). Click here to learn: What organic contaminants does Activated Carbon Filter?
Zeolite Filtration Media – is a fascinating material with both adsorbent & ion exchange properties. The most prominent application for Zeolite and primary purpose in this application is removal of ammonia residual due to the presence of chloramine (chlorine/ammonia compound). Zeolite compliments activated carbon’s adsorption of volatile organic compounds, as Zeolite tends to offer greater efficacy with the removal certain organics that activated carbon is less efficient adsorbing. It also has shown promise for the removal of various radionuclides with its unique ion exchange properties.
{tab=Specifications}
{tab=Installation}
{tab=Glossary of Terms}
review list of other water purification terms...
GPM: Gallons Per Minute
Standard Output: VIQUA’s standard output UV lamp. They generate less heat, but require longer system lengths and exposure time to equal the dose delivered by other lamp types. Ideal for low flow applications. Minimal maintenance costs and heat radiation; full microbiological protection.
High Output: Higher UV power output; ideal for medium to high flow applications.
Amalgam Lamp Technology: For ultimate UV output; typically needed in high flow applications or NSF Class A installations. Due to higher power requirements, it is the preferred lamp technology for light commercial applications or public facilities.
2X Lamp Life: Long life - 2X greater lamp life vs. standard and high output lamps.
2X Output: 2X greater UV-C output vs. standard low pressure lamp technology.
4X Output: 4X greater UV-C output vs. standard low pressure lamp technology.
Constant Current: Ensures stable UV lamp current regardless of power fluctuations.
Safety-Loc: A UV connector design that meets UL979 safety requirements. VIQUA connectors have a built in mechanism that breaks power to the UV lamp and prevents accidental exposure to UV light outside of the chamber.
UV Lamp: The part of the UV system that emits the 254nm germicidal wavelength of UV light. In VIQUA systems, there are 3 types of lamps: Standard Output, High Output and Amalgam.
VIQUA Standard Dose (30mJ/cm2): VIQUA’s uncompromising dose value used to compare all VIQUA systems that do not require NSF Standard 55 Class A certification. Typically used for residential systems. This has been established as an industry standard in the UV water treatment industry.
Connector: The molded connector that the UV lamp plugs into.
Controller: The electronic module that supplies power to the lamp as well as feedback information of the status of the UV system (syn. ballast, power supply)
{tab=Download Documents}
Main Residential Flyer
Installation
Model Spec Summary
{/tabs}
THIS changes the molecular construction of hard water minerals to remove existing and future scale from forming in water pipes, hot water tank, dishwasher, washing machine, showers, drains, coffee machine and everything else your water touches.
Delicious water without removing essential minerals
NSF standard 42 and 61
Patented water filtration technology
Bacteria can’t grow inside the bacteriostatic CuZn filters
Virtually no drop in water pressure
10 Year Warranty on Housing
Water Flow Rate: 8 GPM
Water Source: Municipal
Primary Treatment: Chloramine
Duration: replace 5 years (350,000 Gallons)
Water Source: Municipal
Primary Treatment: Chloramine
Duration: replace 5 years (350,000 Gallons)
Quick Links:
CuZn's Main Information PageChlorine or Chloramine?
Extensive Case Studies
{tab=Product Information}
Water Purification Systems from CuZn
The vast majority of Whole House Systems available today utilize carbon only, a great filter media for common volatile organic contaminants but it does not address the increasingly complex variety of inorganic & organic contaminants that are turning up in water supplies worldwide.
CuZn’s Wide Spectrum Multi Media Stage System target a wider variety of potential contaminants, including both inorganic & organic contaminants. Learn more about CuZn’s Wide Spectrum Model’s patented filtration process below.
About CuZn’s WHCM-47 patented Multi Media filtration process:
The WHCM-47 Wide Spectrum model’s process begins with a Micro Sediment Pre-Filter (model#FHBB-101) to remove any physical, insoluble particles out of the water (even though your water runs clear, you will be amazed by how much dirt & grime this filter captures).
The main tank system utilizes CuZn’s proprietary reticulated KDF-85, in addition to a blend of catalytic acid washed coconut shell carbon & zeolite filtration media.
The Reticulated KDF-85 Filtration Media Stage is a remarkable REDOX media (oxidation/reduction), representing a new and unique natural process of electrochemical oxidation/reduction and adsorption action. KDF-85 targets the dissolved inorganic contaminants (up to 98% of soluble cation heavy metals including mercury, lead, chromium, cadmium, etc.).
Powerful KDF-85 redox media produces an ORP Shift of -300mV or more, creating bacteriostatic environment that prevents the growth of bacteria, mold & other microbial contaminants.
KDF-85 also prevents corrosion and eliminates scale by transforming hardness minerals into crystalline structures that do not adhere to plumbing & appliances (learn more in the What is Salt Free Softening? section below).
SNRF Ion Exchange Coconut Shell Carbon is an adsorbent media that target the volatile organic compounds (chlorine, THMs, disinfection by products, herbicides, pesticides, etc). This carbon is supercharged with an internal modification for ion exchange properties for soluble lead adsorption (Ion Exchange Capacity is 130mg/g). The heavy metal reduction capability is redundant given that reticulated KDF-85 is also incorporated in to the system design, guaranteeing 99% removal of soluble lead (even at high flow rates). Click here to learn: What organic contaminants does Activated Carbon Filter?
Zeolite Filtration Media – is a fascinating material with both adsorbent & ion exchange properties. The most prominent application for Zeolite and primary purpose in this application is removal of ammonia residual due to the presence of chloramine (chlorine/ammonia compound). Zeolite compliments activated carbon’s adsorption of volatile organic compounds, as Zeolite tends to offer greater efficacy with the removal certain organics that activated carbon is less efficient adsorbing. It also has shown promise for the removal of various radionuclides with its unique ion exchange properties.
{tab=Specifications}
FLOW RATE: Gallon per minute | |
DIMENSIONS | |
Chamber | 47” x 10” |
Shipping Weight | Lbs |
OTHER | |
Virtually no drop in water pressure | |
PSI Loss | less than 1 PSI |
Max PSI | 125 |
Made in USA |
Typical Clearly Clean Water Installation Solution
View detailed diagrams showing alternative installation configurations.{tab=Glossary of Terms}
review list of other water purification terms...
GPM: Gallons Per Minute
Standard Output: VIQUA’s standard output UV lamp. They generate less heat, but require longer system lengths and exposure time to equal the dose delivered by other lamp types. Ideal for low flow applications. Minimal maintenance costs and heat radiation; full microbiological protection.
High Output: Higher UV power output; ideal for medium to high flow applications.
Amalgam Lamp Technology: For ultimate UV output; typically needed in high flow applications or NSF Class A installations. Due to higher power requirements, it is the preferred lamp technology for light commercial applications or public facilities.
2X Lamp Life: Long life - 2X greater lamp life vs. standard and high output lamps.
2X Output: 2X greater UV-C output vs. standard low pressure lamp technology.
4X Output: 4X greater UV-C output vs. standard low pressure lamp technology.
Constant Current: Ensures stable UV lamp current regardless of power fluctuations.
Safety-Loc: A UV connector design that meets UL979 safety requirements. VIQUA connectors have a built in mechanism that breaks power to the UV lamp and prevents accidental exposure to UV light outside of the chamber.
UV Lamp: The part of the UV system that emits the 254nm germicidal wavelength of UV light. In VIQUA systems, there are 3 types of lamps: Standard Output, High Output and Amalgam.
VIQUA Standard Dose (30mJ/cm2): VIQUA’s uncompromising dose value used to compare all VIQUA systems that do not require NSF Standard 55 Class A certification. Typically used for residential systems. This has been established as an industry standard in the UV water treatment industry.
Connector: The molded connector that the UV lamp plugs into.
Controller: The electronic module that supplies power to the lamp as well as feedback information of the status of the UV system (syn. ballast, power supply)
{tab=Download Documents}
Main Residential Flyer
Installation
Model Spec Summary
{/tabs}
Vulcan Electronic Descaler
THIS changes the molecular construction of hard water minerals to remove existing and future scale from forming in water pipes, hot water tank, dishwasher, washing machine, showers, drains, coffee machine and everything else your water touches.
Removes Fluoride
Yes
