Viqua K Model

Salesprice with discount
Sales Price $4,720.00
Additional UV Lamp
Additional Quartz Sleeve


tick pointSmall businesses and public facilities
tick pointEconomical and chemical-free way to safeguard drinking water
tick pointConsistent and reliable UV output over the entire life of the lamp
tick pointCoolTouch Fan Technology
tick pointDurable stainless steel chamber



Product Information


Ultraviolet Water Disinfection Systems from VIQUA

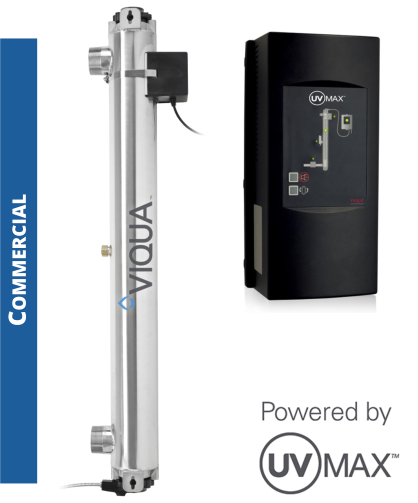

The VIQUA K UV commercial model is designed for commercial purposes where treat water flow rates of up to 80 GPM. This model includes many advanced capabilities and technologies such as 4x the lamp power output, Led monitor and many others. Perfect for a wide range of commercial applications including, small businesses, hospitals, dentist offices, etc.


install viqua pro model

The quality of drinking water can change with time and become contaminated with harmful bacteria. The PROFESSIONAL family of compact UV disinfection systems provide a reliable, economical, and chemical-free way to safeguard drinking water in any residential or light commercial application.


Features of VIQUA UV Water Disinfection Systems


The VIQUA systems use a revolutionary lamp with twice the output of current high-output lamps, giving you compact single-lamp systems that are half the size of their predecessors.

New and improved sensor ensures safe UV levels are maintained.

The CoolTouch Fan significantly reduces water temperature and does not waste any water.

Revolutionary amalgam lamps reduce maintenance requirements by lasting up to 2 years.

For the sleeve bolts a quarter-twist to the positive stop and you’re done. No tools, no risk of over-tightening.

Flexibility to connect to either 1¼” MNPT or 1” FNPT

Intuitive Interface - a picture is worth a thousand words. With plug-and-play color coded connections, it’s as easy as “connect the dots.”

The optional plug-and-play solenoid valve stops water flow in the event that water treatment is compromised.
Like a standard plug - no more grounding wires!

The optional COMMcenter displays UV dose and can monitor up to 9 UV systems - that’s up to 270 gpm!

While other brands may have problems with water leaks, inconsistent UV power and installation issues, you can relax knowing Viqua is a high quality manufacturer that DOES NOT outsource production to China. Viqua is the best brand in the UV water disinfection market.


Specifications


FLOW RATE (@ 95% UVT)
VIQUA Standard (30 mJ/cm2) 1 GPM (4 lpm) (0.25 m3/hr)
US Public Health (16 mJ/cm2) 2 GPM (8 lpm) (0.5 m3/hr)
NSF/EPA (40 mJ/cm2) 0.7 GPM (3 lpm) (0.2 m3/hr)
DIMENSIONS
 Chamber  12.5” x 2.5”
 Controller  12 1/2” x 2 1/2”
 Inlet/Outlet Port Size  3/8” FNPT / 1/2” MNPT
 Shipping Weight  4 Lbs
ELECTRICAL
 Voltage  100-140 V
 Power Consumption  13 W
 Maximum Operating Pressure  125 psi
 Influent Water Temperature  36-104 °F
FEATURES
 Visual "Power On"  Yes
 Chamber Material  304 Stainless Steel
 Visual Lamp Life Remaining  No
 Audible Lamp Failure  No
 Audible Lamp Replacement Reminder  No


Installation


install viqua pro model

Professional UV Systems connect to your main water supply and is best installed by a professional plumber. It is better to have a water by-pass flow with shut-off valves installed to make replacing your yearly UV bulbs that much easier.



Glossary of Terms


review list of other water purification terms...

GPM: Gallons Per Minute

Standard Output: VIQUA’s standard output UV lamp. They generate less heat, but require longer system lengths and exposure time to equal the dose delivered by other lamp types. Ideal for low flow applications. Minimal maintenance costs and heat radiation; full microbiological protection.

High Output: Higher UV power output; ideal for medium to high flow applications.

Amalgam Lamp Technology: For ultimate UV output; typically needed in high flow applications or NSF Class A installations. Due to higher power requirements, it is the preferred lamp technology for light commercial applications or public facilities.

2X Lamp Life: Long life - 2X greater lamp life vs. standard and high output lamps.

2X Output: 2X greater UV-C output vs. standard low pressure lamp technology.

4X Output: 4X greater UV-C output vs. standard low pressure lamp technology.

Constant Current: Ensures stable UV lamp current regardless of power fluctuations.

Safety-Loc: A UV connector design that meets UL979 safety requirements. VIQUA connectors have a built in mechanism that breaks power to the UV lamp and prevents accidental exposure to UV light outside of the chamber.

UV Lamp: The part of the UV system that emits the 254nm germicidal wavelength of UV light. In VIQUA systems, there are 3 types of lamps: Standard Output, High Output and Amalgam.

VIQUA Standard Dose (30mJ/cm2): VIQUA’s uncompromising dose value used to compare all VIQUA systems that do not require NSF Standard 55 Class A certification. Typically used for residential systems. This has been established as an industry standard in the UV water treatment industry.

Connector: The molded connector that the UV lamp plugs into.

Controller: The electronic module that supplies power to the lamp as well as feedback information of the status of the UV system (syn. ballast, power supply)


Download Documents


Main Residential Flyer
Installation
Model Spec Summary
